Ready-to-Finish Gas Fire Pit Kits

Looking to build a custom fire feature with total design freedom? Our ready-to-finish gas fire pit kits are the perfect solution for DIYers, landscape contractors, and designers who want maximum flexibility without starting from scratch.

These high-quality kits feature Warming Trends™ burner systems for unbeatable performance and come with durable aluminum frames wrapped in concrete board — giving you a solid foundation that’s ready for your choice of stone, tile, stucco, or other exterior finishes.

Whether you're outfitting a cozy backyard patio in Seattle or building a showstopper for a client in Tacoma or anywhere in the Puget Sound region, these kits are built for convenience and customization.

Available in 5 Custom Shapes

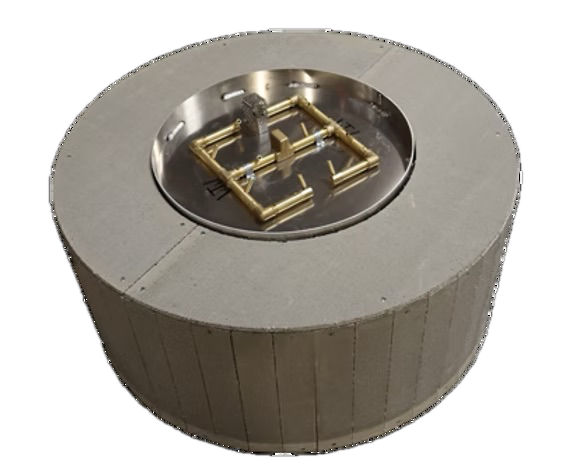

  • Round concrete fire pit with metal burner insert

    Circular

  • Rectangular stainless steel fire pit burner box with ignitor system.

    Rectangular Linear

  • Rectangular wood and metal planter box with decorative brass fixtures on top

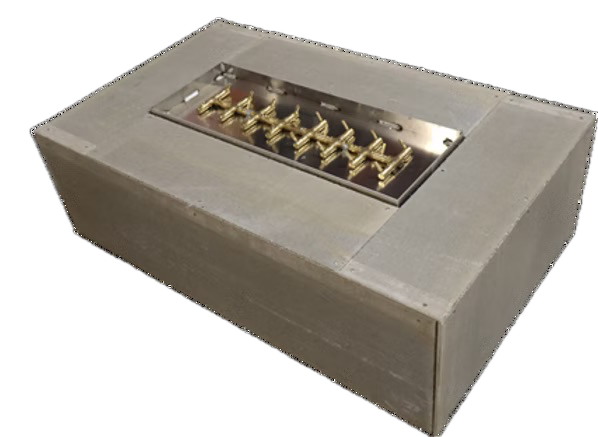

    Rectangular Tree-Style

  • A large square box with a glass top displaying a metallic, angular structure inside.

    Square

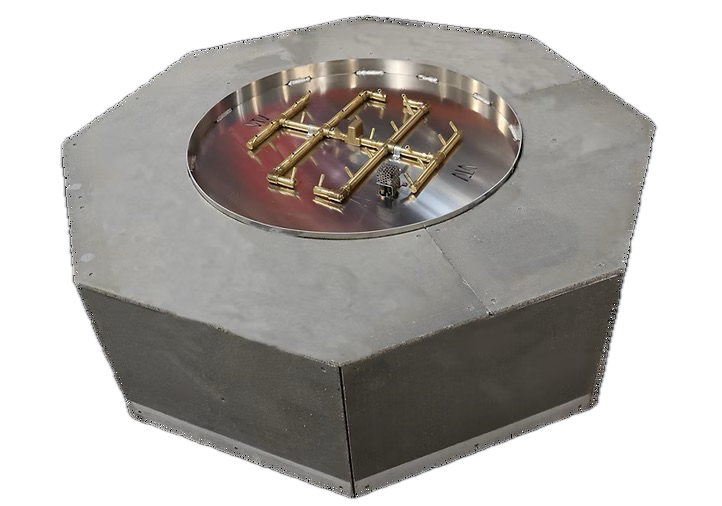

  • Hexagonal fire pit with metal burner components on a concrete base.

    Octagonal

Square Ready -To-Finish Kits

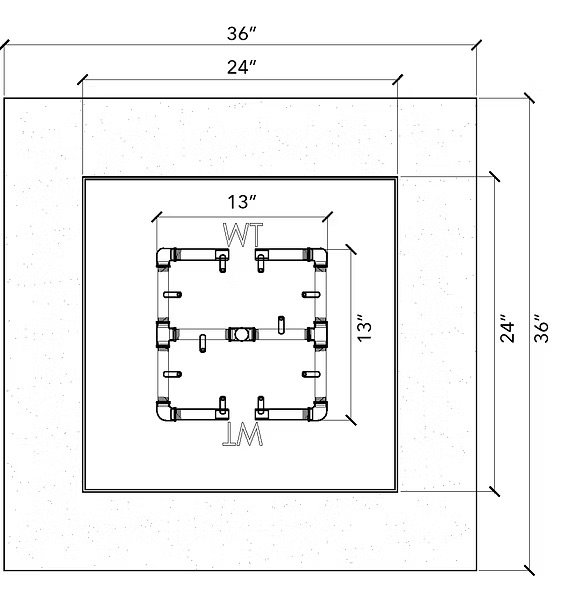

  • Technical drawing of a square concrete slab with dimensions labeled as 36 inches by 36 inches. Inside, a smaller square area is marked with 13-inch sides, containing an arrangement labeled 'WT'. Various symbols and components are depicted within the inner square, likely indicating structural or assembly details.

    FS3636NG | FS3636LP

    Dimensions: 36" x 36" W x 18" H Aluminum Frame
    with Concrete Board Attached

    Includes:

    CFB120 Original Brass Burner with WATERSTOP®

    24" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

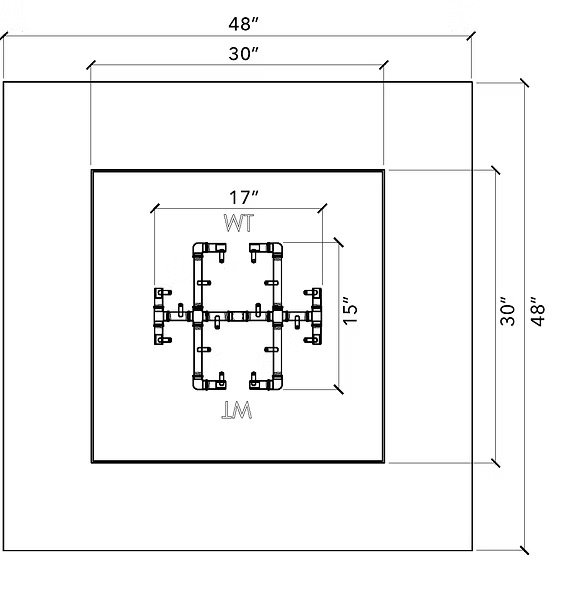

  • Diagram of a square structure with measurements labeled as 48 inches by 48 inches and a central component marked as 17 inches by 15 inches, labeled 'WT'.

    FS4848NG | FS4848LP

    Dimensions: 48"x 48" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFB180 Original Brass Burner with WATERSTOP®

    30" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

  • Technical drawing with dimensions of a square structure, featuring two parallel lines with a connecting beam in the center. Outer square dimensions are 54 inches by 54 inches, and inner structure dimensions are 21.5 inches by 21.5 inches, labeled WT and WLT.

    FS5454NG | FS5454LP

    Dimensions: 54" x 54" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFB290 Original Brass Burner with WATERSTOP®

    36" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Dual Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

  • Technical drawing of a mechanical structure with dimensions

    FS6060NG | FS6060LP

    Dimensions: 60" x 60" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFB290 Original Brass Burner with WATERSTOP®

    42" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Dual Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

Request a Quote

Rectangular Linear Ready-To-Finish Kits

  • Technical diagram showing dimensions of a rectangular table with measurements of 48 inches by 30 inches for the entire table and 22 inches by 10 inches for the inset section.

    FR4830NG | FR4830LP

    Dimensions: 48" L x 30" W x 18" H Aluminum Frame
    with Concrete Board Attached

    Includes:

    CFBL110 22" Linear Brass Burner

    28"x 10" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    Key Valve Extension

     Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

  • Diagram showing a rectangular layout with dimensions 60 inches by 36 inches. A smaller rectangle within it measures 38 inches by 14 inches, and another inner rectangle measures 30 inches horizontally.

    FR6036NG | FR6036LP

    Dimensions: 60" L x 36" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFBL150 30" Linear Brass Burner

    38"x 14" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

  • Technical diagram of a rectangle with dimensions labeled as 72 inches by 48 inches. Inside it, another rectangle is positioned centrally, labeled 42 inches by 18 inches, containing a straight line with markings or symbols.

    FR7242NG | FR7242LP

    Dimensions: 72" L x 42" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFBL210 40" Linear Brass Burner

    48"x 18" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    Key Valve Extension

     Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

Request a Quote

Octagonal Ready-To-Finish Kits

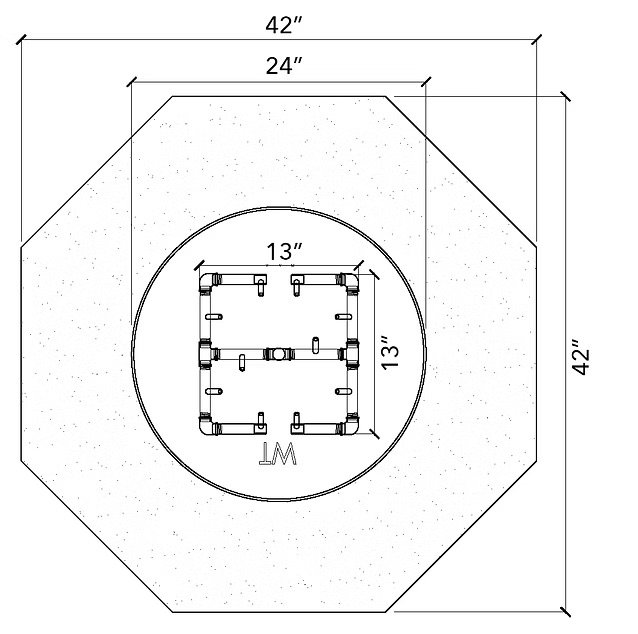

  • Technical drawing of an octagonal base with dimensions, featuring a central circular section measuring 24 inches in diameter and a square grid inside measuring 13 inches by 13 inches. Overall dimensions are 42 inches by 42 inches.

    FO42NG | FO42LP

    Dimensions: 42" W x 18" H Aluminum Frame
    with Concrete Board Attached

    Includes:

    CFB120 Original Brass Burner

    24" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

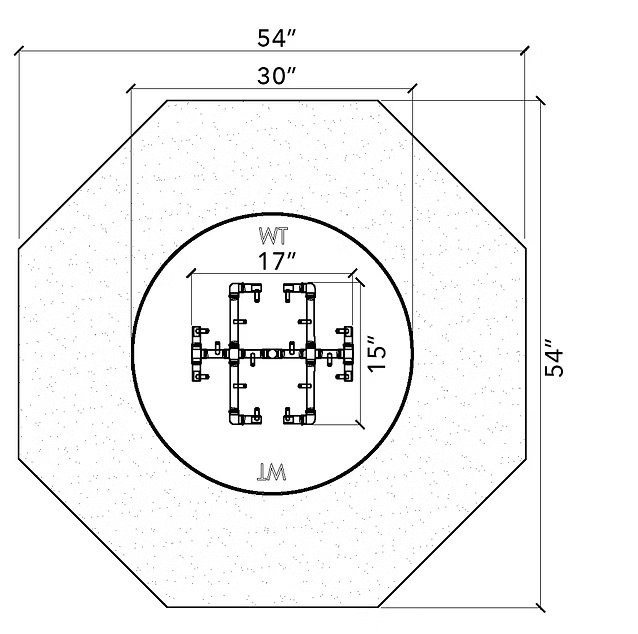

  • Technical drawing of an octagonal structure with dimensions; overall size 54x54 inches, inner circle diameter 30 inches, central cross-section measuring 17x15 inches.

    FO54NG | FO54LP

    Dimensions: 54" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFB180 Original Brass Burner

    30" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition Sy

  • Technical drawing of an octagonal platform with dimensions. Outer dimensions are 60 inches and 36 inches, with a circular section marked at 21.5 inches. Includes a symmetrical structure inside identified as 'WT.'

    FO60NG | FO60LP

    Dimensions: 60" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFB290 Original Brass Burner

    36" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Dual Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

Request a Quote

Rectangular Tree-Style Ready-To-Finish Kits

  • Technical drawing with dimensions showing layout and measurements in inches, including 48 inches by 30 inches overall, and a central rectangular area with smaller components marked 22 inches by 10 inches.

    FRT4830NG | FRT4830LP

    Dimensions: 48" L x 30" W x 18" H Aluminum Frame
    with Concrete Board Attached

    Includes:

    CFBT170 Tree-Style Brass Burner

    28"x 10" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

  • Technical drawing of a rectangular component with dimensions labeled. Outer dimensions are 60 inches by 36 inches, with an inner section measuring 30 inches by 14 inches. Includes detailed symbols for fittings or fasteners along a central line.

    FRT6036NG | FRT6036LP

    Dimensions: 60" L x 36" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFBT230 Tree-Style Brass Burner

    38"x 14" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

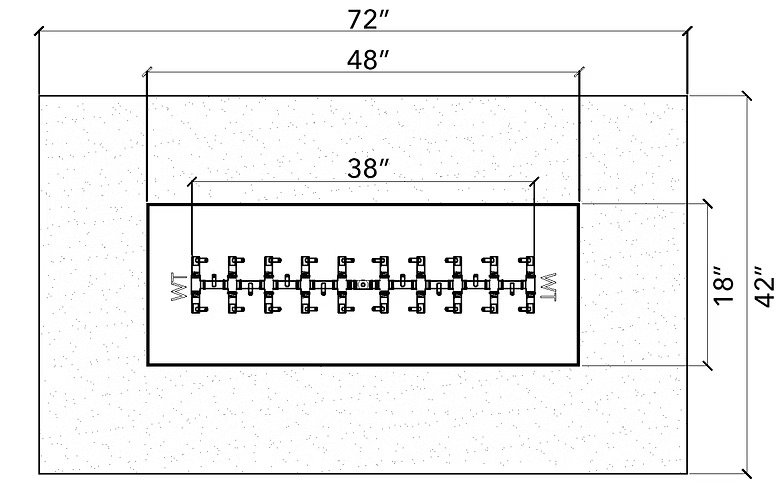

  • Technical drawing of a rectangular area with dimensions labeled. The outer rectangle is 72 inches by 42 inches, with a smaller inner rectangle labeled 48 inches by 18 inches. The smallest rectangle is 38 inches wide. The drawing includes a central row of symbols labeled 'WT'."

    FRT7242NG | FRT7242LP

    Dimensions: 72" L x 42" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFBT290 Tree-Style Brass Burner

    48"x 18" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Dual Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

Request a Quote

Circular Ready-To-Finish Kits

  • Technical drawing of a circular object with dimensions. Outer circle measures 42 inches in diameter, inner circle measures 24 inches. A smaller square section, 13 inches on each side, is labeled "WT". The design suggests a structural or mechanical component layout.

    FC42NG | FC42LP

    Dimensions: 42" W x 18" H Aluminum Frame
    with Concrete Board Attached

    Includes:

    CFB120 Original Brass Burner

    24" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

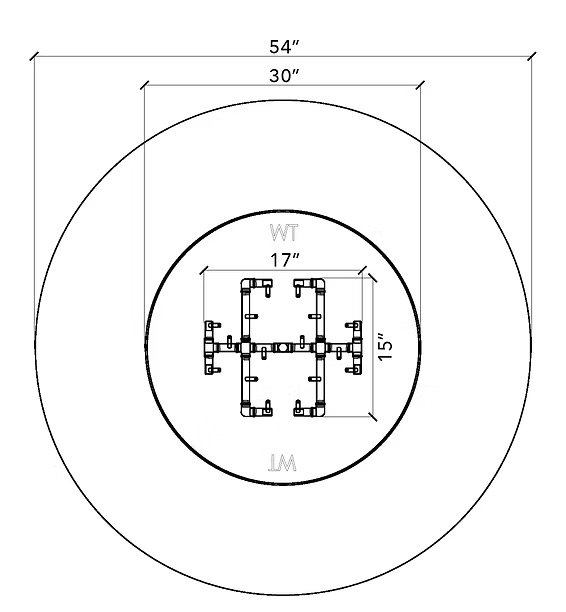

  • Technical diagram with measurements; shows a circular layout with inner and outer circles. Outer circle is 54 inches in diameter, inner circle is 30 inches. Center features a rectangular grid labeled WT, measuring 17 inches by 15 inches.

    FC54NG | FC54LP

    Dimensions: 54" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFB180 Original Brass Burner

    30" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

  • Technical drawing of a circular object, possibly a light fixture or ceiling mount, shown with dimensions. Outer circle measures 60 inches in diameter, inner circle 36 inches, and central square component is 21.5 inches. Includes various mechanical features or connectors within the central section.

    FC60NG | FC60LP

    Dimensions: 60" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFB290 Original Brass Burner

    36" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Dual Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

  • Schematic diagram of a large circular structure with a central square frame, dimensions labeled. Outer diameter: 72 inches, inner diameter: 48 inches, square frame: 30.5 inches by 30.5 inches.

    FC72NG | FC72LP

    Dimensions: 72" W x 18" H Aluminum Frame with Concrete Board Attached

    Includes:

    CFB350 Original Brass Burner

    48" Aluminum Pan with 2" Sidewalls

    Fire Pit Vent Kit

    3/4" Dual Flex Line Kit

    4" Key Valve Extension

    Ignition systems options available: Push Button, Mercury Ignition System, Platinum Ignition System, 3 Volt, 24 Volt Hot Surface Ignition (SC)

Request a Quote

Don’t see exactly what you’re looking for?

Tell us about your vision. We work with a range of premium manufacturers and can source nearly any fire pit style — and we also offer custom options to bring your ideal outdoor setup to life.
